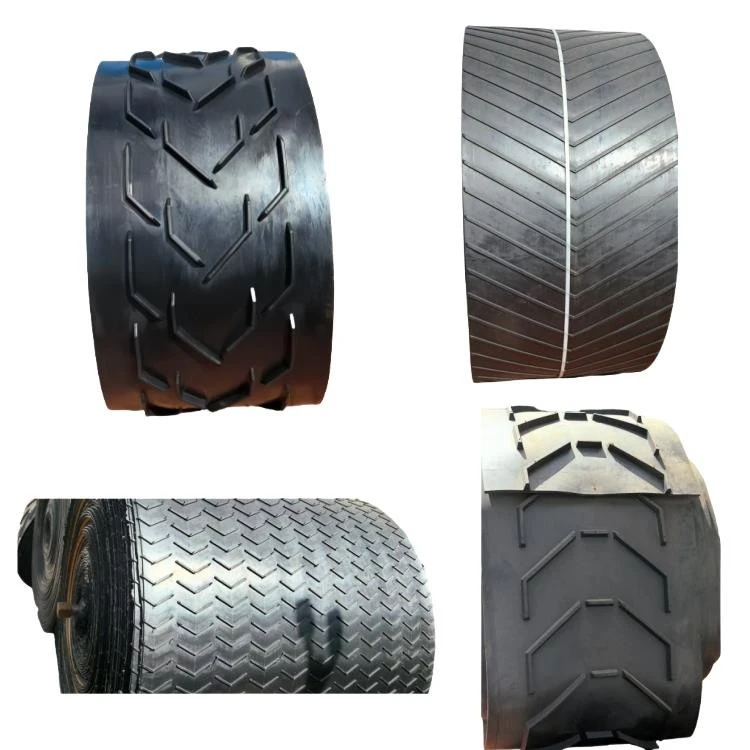

Conveyor belts with smooth top cover are useful for conveying of bulk solid materials up to the angle of inclination 22° as an upper limit. When reliable conveyor belts for steep inclines are needed, possibly as steep as 30° or even 40°, then profiled belts are the right belts when material has to be conveyed without slip. Special features of our profiled conveyor belt with a variety of pattern designs and cleat heights available, to suit most applications. Ensured belt trough ability conformed to satisfy demanding 3, 4-or 5-idler configuration with large trough angle equipped on steep-angle conveyors departments.
Belt Selection
Select carcass reinforcement according to conveying distance, take-up travel, belt tension rating:
- Fabric belt (short length, low belt tension rating)
- Steel cord belt (underground fire retardant, long distance, high belt tension rating)
- Select covers according to material type, temperature, and energy saving requirement
- Fire retardant, wear resistant, acid/alkali resistant, heat resistant, flame resistant, oil resistant
Select profile pattern and cleat height according to belt width, belt strength required by conveyor system and material characteristics.
Advantages of Patterned Conveyor Belts

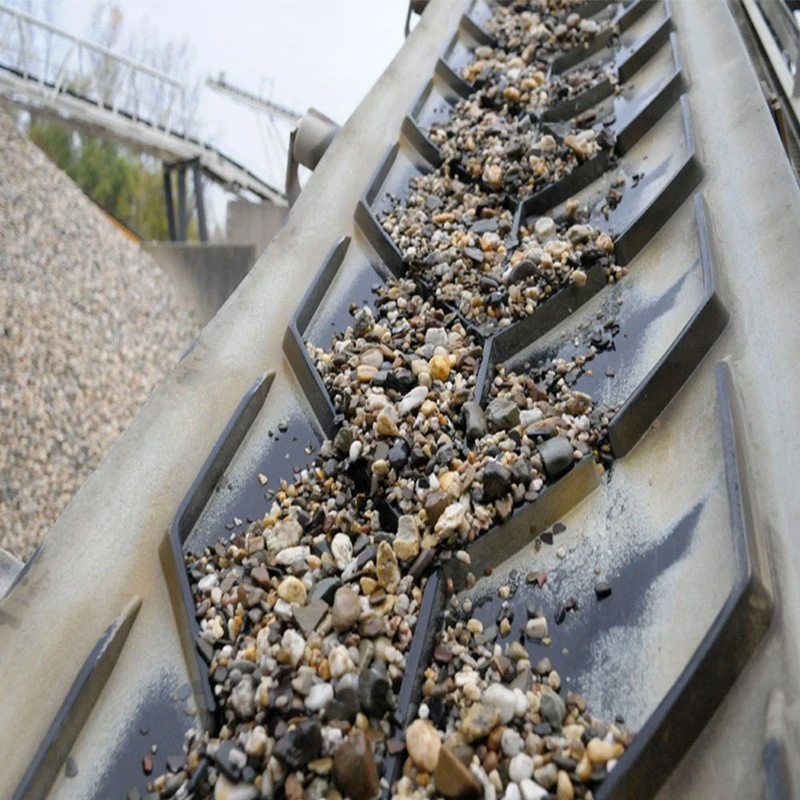

Superior Anti-Slip Performance – The raised surface patterns (e.g., chevron, grass, diamond) significantly increase friction, preventing materials from sliding or rolling back - ideal for inclined or high-speed conveying.
Higher Conveying Efficiency – Enhanced grip ensures stable transport, reducing material buildup and spillage for smoother operation.
Versatile Material Handling – Effectively handles bags, bulk goods, small packages, and even wet or round items with minimal slip or loss.
Improved Incline Capability – Enables steeper conveying angles, allowing more compact system layouts without compromising performance.
Reduced Energy Consumption – Minimizes slippage-related inefficiency, lowering motor load and energy costs.
Durable & Long-Lasting – Made from high-quality rubber or PVC with optimized tread patterns for excellent wear resistance and extended service life.
Wide Range of Options – Available in various pattern types, depths, and materials to suit diverse applications in food processing, logistics, packaging, mining, and more.
|
Industry |
Application |
Key Requirements |
|

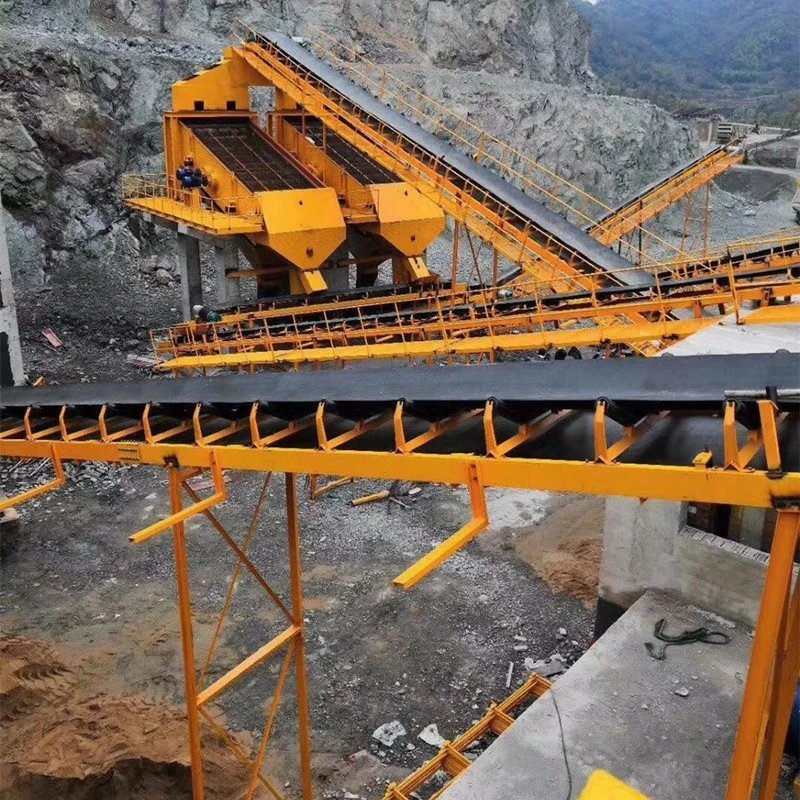

Mining & Quarrying |
Ore, aggregates, coal transportation on inclined paths |
Chevron/V-shaped pattern for anti-slop; High tear resistance; Heavy-duty wear protection |
|
Agriculture & Grain |
Harvest, grains, granules, biomass material handling |
Chevron/Cleated pattern for vertical lifting; Low residue design; Oil & moisture resistant |
|
Construction Materials |
Sand, gravel, cement clinker transport |
Ribbed/Chevron pattern for steep angle conveyance; Heat resistant coating; High tensile strength |
|
Waste Management |
Municipal solid waste, recyclables sorting |
Deep cleat pattern for irregular loads; Cut resistance; Low noise operation |
|
Logistics & Bulk Ports |
Bulk cargo, feedstock, cross-docking |
Herringbone pattern for stable high-speed transport; Low elongation carcass; Corrosion proof |
|
Chemical Processing |
Chemical pellets, raw material transfer |
Anti-static pattern; Acid & alkali resistant coating; Precise angle conveyance |
